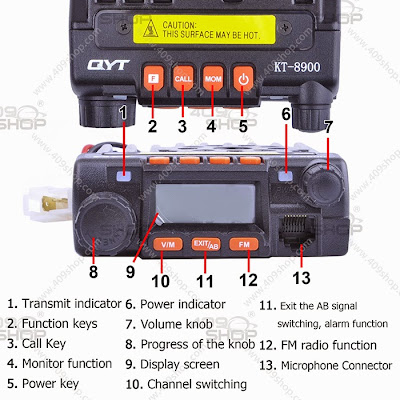

QYT KT8900: Dual Band Mobile

I get the marketing e-mails from 409Shop and the QYT KT8900 dual-band mobile caught my eye - just because the price was less than $100.



Frequency Range: VHF:136-174MHz  UHF:400-480MHz
Number of Channel: 200
Channel Spacing: 25KHz 20K 12.5
Phase lock step: 5KHz、6.25 KHz、10 KHz、12.5 KHz、15 KHz、25 KHz
Working Voltage: 13.8V DC±15%
Squelch way: CTCSS/DCS/5Tone/2Tone/DTMF
Frequency Stability: ±2.5ppm
Operating Temperature: -20~+60
Dimension(W x H x D): 98(W) x 35(H) x 118(D)mm
Weight: 408g

Receiver
Sensitivity
Broadband: ≤ 0.25μV
Narrow band: ≤ 0.35μV

Transmitter
Output power: 25W/20W(VHF/UHF)

48 comments:

  1. It's like Leixen 898 but with some more "juice".

    ReplyDelete
    Replies
    1. Does the radio have a CE mark for use in Europe?

      Delete
  2. This comment has been removed by the author.

    ReplyDelete
  3. http://www.amazon.com/Juentai-JT-6188-136-174-400-490MHz-Transceiver/dp/B00XJJU4SC/ref=redir_mobile_desktop?ie=UTF8&dpID=514qL5WLb2L&dpPl=1&keywords=juentai&pi=AC_SY200_QL40&qid=1431707314&ref=plSrch&ref_=mp_s_a_1_44&sr=8-44

    ReplyDelete
  4. I fent. Will report once it's in hand and on a dummy load or antenna.

    ReplyDelete
  5. I think I need serious help.
    I currently have a VV808SU, VV808SV, VV898.
    But I bought one anyway. Help me, Please!!!

    John
    http://www.miklor.com

    ReplyDelete
    Replies
    1. check this out....
      https://sites.google.com/site/g7eob1/radio/qyt-kt-8900-review

      Delete
    2. According to the sales tech at 409 shop their unit tested 25 watt VHF 20 UHF...I'm reading different versions between the Juentai JT-6188 and the QYT KT 8900, which look to be the exact same radio with different branding. Amazon seller states 20 watts on VHF, so who knows the exact output of the radio. I'm beginning to wonder what kind of watt meters they are using and into a dummy load or into the antenna... Should be interesting to see more reviews on these units....

      Delete
    3. John - look forward to hearing how you like it!

      Delete
  6. Mine arrived this morning. Took just 5 days from Hong Kong. The rig is indeed tiny. It fired up OK. The supplied instruction sheet that came with it was the worst translation of Chinglish I've ever come acroos - and it was for a different model of radio, the KT-UV980. No data cable and no indication of where to plug said cable in either.

    ReplyDelete
  7. Does it have a alfa display ? ki4ikm@gmail.com

    ReplyDelete
  8. Mine got here. Purchased via Amazon, it's the Juentai JT-6188 implementation of the same rig.
    I've been able to get some simplex channels stored and named. I've gotten duplex settings working in vfo mode, but seem to be having issues getting offset saved to channel assignments.

    Will work through it a bit and see if I can make heads or tails out of that.

    Generic USB cable for I-F26 or Y-VX160 do not work with ths radio.

    More as I learn.

    ReplyDelete
  9. ... and there is an alpha display.

    ReplyDelete
  10. For channel name assignments, you must program the memory for the frequency, then go back into the channel name mode, enter the name (note: mic buttons much faster than trying to spin the knob on this), and then give it the memory number to assign the name to.

    ReplyDelete
  11. Yo tengo la QYT KT UV980 que por lo que veo los menus son similares. Para introducir los repetidores programo primeramente la frecuencia de salida con el desfase - que le corresponda y lo almaceno en una memoria. Posteriormente hay que desde el modo VFO introducir la frecuencia de entrada del repetidor y almacenarla en la misma memoria en la se ha almacenado la de salida. A mi me ha funcionado bien así.

    ReplyDelete
    Replies
    1. Via Google Translate... "I have the QYT KT UV980 that I see, the menus are similar. To enter schedule the first repeater output frequency with the phase - that corresponds and stored in a memory. Then you have to enter from the VFO frequency repeater input and stored in the same memory on has been stored the output. To me it has worked fine."

      Delete
  12. I am having big problems storing a channel memory and then making it transmit properly. Any solutions? In other words when I'm not in channel mode everything works fine. After I program and save the channel and then switch to channel mode, the offset does not show up for repeater operation.... WTF???

    ReplyDelete
    Replies
    1. This comment has been removed by the author.

      Delete
    2. This comment has been removed by the author.

      Delete
    3. This comment has been removed by the author.

      Delete
  13. It was a pleasure to receive a QYT KT8900 mini-transceiver. The programming instructions are not written for the radio operator but rather for the computer programmer. Faulty cross references exist in the instruction guide. This cute little transceiver could really be a bombshell if someone would develop a CD instead of offering a download which cannot be utilized by some operating systems. The transceiver design and layout for the price range is quite good when one considers what is usually on $140 product is about 10 watts of output. Some TYT models have been improved with a Kenwood microphone for better dynamic audio in transmit mode. Is there a replacement microphone for the QYT KT-8900? Radios in this class are flooding the worldwide market because of the Chinese dumping efforts to secure the market place. It appears American support teams are going to have to develop a technical support system for these bottom end market sets. Without this effort, one will pay for the unit in other ways trying to make it operational.

    ReplyDelete
    Replies
    1. re: "This cute little transceiver could really be a bombshell if someone would develop a CD instead of offering a download which cannot be utilized by some operating systems."

      Are you referring to the .rar file type? If so, download 7-zip and use it to extract the compressed files. .rar is much more common in Asia than the .zip files we see in the US.

      Delete
  14. Does anyone know of a way to convert the manual to something more "user friendly"?

    ReplyDelete
    Replies
    1. I've only see the image files - no PDF or other version.

      Delete
  15. http://www.miklor.com/KT8900/KT8900-Program.php. There is a program for programing this radio somewhere on the sight. But its not listed under the QYT brand but its the same radio. Ok I got it program using windows, but now sometimes when some keys the repeater my radio locks up, like the squelch will not open it up. Not always but quite frequently. Starting to get annoyed at this little beast. Any ideas anyone? Or has anyone else had a similar problem???

    ReplyDelete
  16. Here it is....

    http://www.miklor.com/KT8900/

    ReplyDelete
  17. Ned,
    Try this;

    Programing CTCSS Tone and Off Set into Memory Channel
    JT-6188


    Change from Menu to Menu by pressing the [Exit/AB] button.

    First, clear memory channel; (example, clear channel 12 )

    Set radio to VFO Mode by pressing [V/M] Channel number at right will disappear. Select and press: [MENU] press 37 on key pad, press [F] rotate large knob to CH-012 and press [F]. Press [EXIT A/B] to exit.


    Second, enter the receive (RX) frequency into Upper VFO and transmit (TX) frequency into Lower VFO. (example, 146175 as RX and 146115 as TX.)

    In VFO, press [EXIT/AB] to select Upper display and enter RX frequency 146175 using the key pad.
    Then, press [EXIT/AB] to select Lower display and enter TX frequency 146115 using the key pad
    Press [EXIT/AB] and again select the Upper display.


    Third, select desired TX encode tone (example 123.0)

    In VFO, and with the upper received frequency selected, Press [MENU], Press 13 on keypad, then press [F] and rotate large knob to desired T-CTCS tone of 123.0, then press [F].
    Press [EXIT/AB] to Exit and save.


    Forth, now to SAVE a selected repeater frequency to a Memory Channel.
    (example: channel 8)
    It is not necessary to enter a positive or negative offset for the memory channel, as you will be entering both the RX and TX frequency and saving this to a selected memory channel.

    Now, in VFO, with the Upper frequency selected and having entered the TX tone if required, Press [MENU], press 36 on key pad and then press [F]. rotate large knob and select CH-008 and then press [F]. Press [EXIT/AB], RX has been added.

    Now, using the [EXIT/AB] key, select the Lower frequency. Press [MENU], press 36 on key pad, Press [F], rotate large knob to CH-008 and then press [F]. Press [EXIT/AB], TX has been added.

    Press [V/M] to return to Memory Mode. Channel number will re-appear.

    ReplyDelete
  18. Well after two months in the summer Miami sun mounted on my dash, I declare it is well worth the money. Still going strong, no real complaints for $100. If in doubt, buy it.

    ReplyDelete
  19. Just received my QYT KT-8900, must say after looking through the menus and watching a YouTube Video on programming this , I found it fairly simple to save a repeater with offset and T-CTCSS into MEM00 , much like the Baofeng UV-5R method , you do have to save both the Transmit and Receive into the same channel or you'll get Simplex mode.

    ReplyDelete
    Replies
    1. I got my Radio 3 weeks ago.
      Result until now, never would buy it again.
      Trouble with bad muffy Modulation, pulsing Sound Audio during drive in car.
      And a lot of rf emi in the car electronics. Think by line on the 12 V plug.
      Sorry guys thats truth. I told only the have of Problems.
      That all is not funny.

      Delete
  20. How do you change the TX power on a saved channel. I saved a channel on low power, but when I go into the menu and change it to high, it won't stick. On VFO mode if I change it, it will save it just fine and transmit on high power. On the Baofeng handhelds pressing the # button does the trick, but that doesn't seem to work on this.

    ReplyDelete
    Replies
    1. You need to re-save the channel, including all the settings (freq, offset, power, tone, etc.), over again.

      Delete
  21. This comment has been removed by the author.

    ReplyDelete
  22. I bought this radio few weeks ago. Never would buy this again.
    Really no good modulation weak and muffy, everbody told me this. Tried this by changing the mic capsule . Seems me a general design bug. Heard this from a lot of radios of the same type.
    Also have problems in car use. RF on the 12V line makes EMI trouble in car electronics.

    By driving is the received audio totally cracked. Seem to be failfunction of squelch by fading.
    The time constant of squelch function is to short.
    No good radio deal at all.

    ReplyDelete
  23. I had this radio for about 2 months, used it, tested it, sold it as soon as posible.....It is a nice set BUT... receiver overloads very easy and driving thru the city there is so much interference the set is of no use at all. It is picking up rfi and the receiver just quits.... Transmitter is fine, audio is not good and is not adjustable. Before this radio I had a Leixen VV898. That radio had fair audio, but the receiver was also easy overloaded. Now I am back to my Yaesu FT7800 and feel happy about it ;-)
    All in all, no more cheap Chinese radios for me! There is a reason they are sold this cheap...I wonder what that reason might be....
    73's Richard PA5RR

    ReplyDelete
  24. Some helpful reviews here . i purchased this yesterday.I am a foundation licence here in the UK. I also have a baofeng UV 5R and I am trying to store my local repeater. I will give some feedback shortly.

    ReplyDelete
  25. i have a moonraker mt-270m same as the qyt-8900 today i turned it on to have a qso with a local and there was no sound upon opening the radio i see a chip blown in 1/2 LA42??? any one know the chip number so i can order a new one its the audio chip i presume..
    TIA paul

    ReplyDelete
    Replies
    1. LA4225 an LA4425 will also work. Ric. ZL2RIC

      Delete
  26. What is a replacement final transistor equiv? They blow very quickly at 13.8v and lots of 'dead' 8900's around now!!!

    ReplyDelete
  27. No answer from above...... any-one home?

    ReplyDelete
  28. https://www.nxp.com/docs/en/data-sheet/AFT05MS006N.pdf

    This is a 8W 7.5V part. I just purchased a KT-8900R and popped it open to see. I get 35W on HIPWR at 144MHz quickly dropping to 16W after about 30 seconds at 12.7V. Not bad for an 8W part. I can see why they die at 13.8V, especially if they key up with out a load. I’ll keep it on LOPWR !

    ReplyDelete
  29. I have programmed a QYT KT-8900 with RT Systems software and cable, everything went in just fine but it will not transmit on GMRS frequincy. any ideas?

    ReplyDelete
  30. When I reprogrammed QYT KT 8900 from frequency to Name the error "STOP USER!! display on the screen and lock all keys and botton from radio to speakermic. Can you help me to solve this problem in my KT 8900?

    ReplyDelete
    Replies
    1. Hello, I have the same problem... and I don't know how to solve it. Have you been able to solve? Do you at least know the cause? Thanks.

      Delete
  31. Hola, el problema era los todos DTMF. Abrir el software de programación, y en el apartado DTMF, abrir y escribir la radio, y se quita lo de Stop USER.

    ReplyDelete
  32. Great write-up!

    I have had mine for about 2 to 3 months now and have a few things to add for discussion. After looking on forums and other information sources, here's what I've found...

    1. The final transistor is an A5M06 type, which puts out about 6 to 7 watts stock at 7.5V. It might also be a Mitsubishi RD07MUS2B (that's what mine came with), which also runs the same specs, more or less. For some blasted reason, the designers thought it would be a good idea (less $$$ involved) to overclock a 7W transistor to push out 25 watts. NOT A GOOD IDEA AT ALL!!! They must not have heard of the mystical magic smoke demons. Instead, the appropriate part is the A9M15 from NXP, which pushes out around 16 to 20 watts at a better rated 12.5V nominal voltage.

    2. If you don't want to replace the final (which I highly recommend you don't unless all else fails), there is a centermost potentiometer on the main board that can be used to adjust the power. DO NOT mess with the one closest to the side of the radio! This will mess with the frequency alignment, or so I've been told. All you will need is a wattmeter and dummy load to test the power output, and an insulated screwdriver for adjustments. Personally, I'd put the high power side at around 10W. I know it stinks, but 10 watts is plenty to get you into a repeater all the way across town. The adjustment is very finicky, so adjust the pot in small, minute increments.

    3. The final transistor wasn't the only thing skimped out on money-wise. Besides being overdriven, the final isn't heatsinked properly, sometimes at all. The manufacturers install a "silicone thermal pad" that is supposed to wick away heat - it doesn't. No, really, it doesn't!!! Remove this and put on an aluminum or copper heatsink, and throw the thermal pad away - it's junk and they don't work at all. I'd also recommend finding a model with a rear fan. This helps with air flow and cools things drastically. If you have a model without a fan, adding a small one on shouldn't be too difficult to do.

    I hope this helps those considering this radio. I love it and have it in my daily driver with a <$20 mag mount on the roof. I can hit our local repeater anywhere in town without an issue and have gotten several good audio reports! Programming is hit-and-miss, as I can program frequencies but cannot customize the power on message.
